Editing Nodes
Learn about nodes that help with editing in Rubbrband

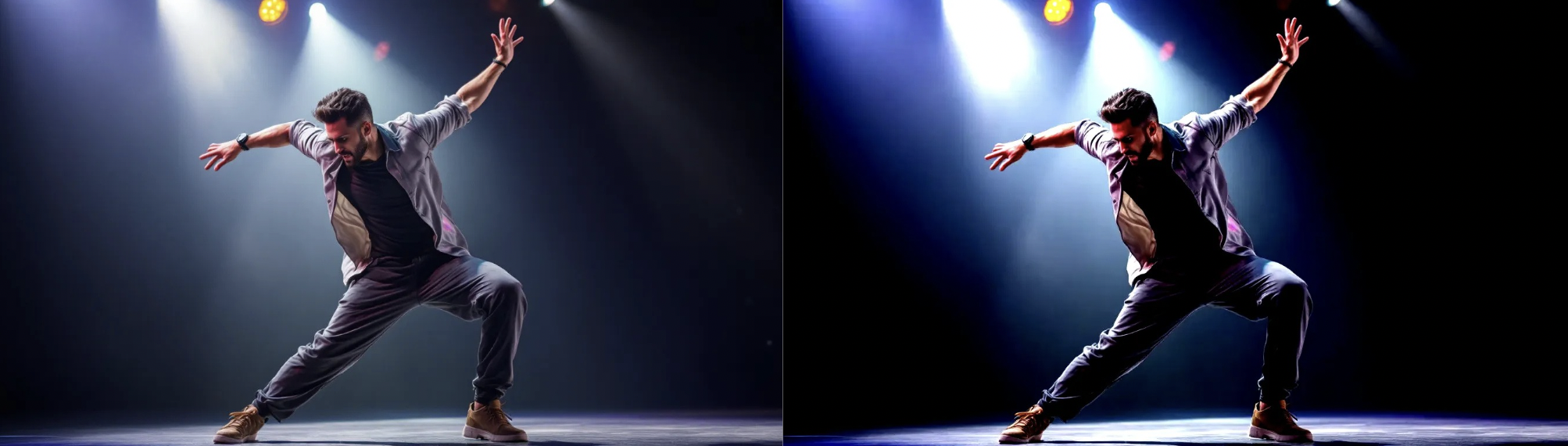

Adjust Image Color Levels Node
The Adjust Image Color Levels Node takes in an input image, and rounds dark pixels to completely black, and lighter pixels to completely white (given thresholds). This sometimes helps with color contrast in images.
Inputs
The input image to adjust color levels for.
Settings
The pixel value below which pixels will be rounded to completely black. default: 50
The pixel value above which pixels will be rounded to completely white default: 200
Outputs
The output image after color correction.

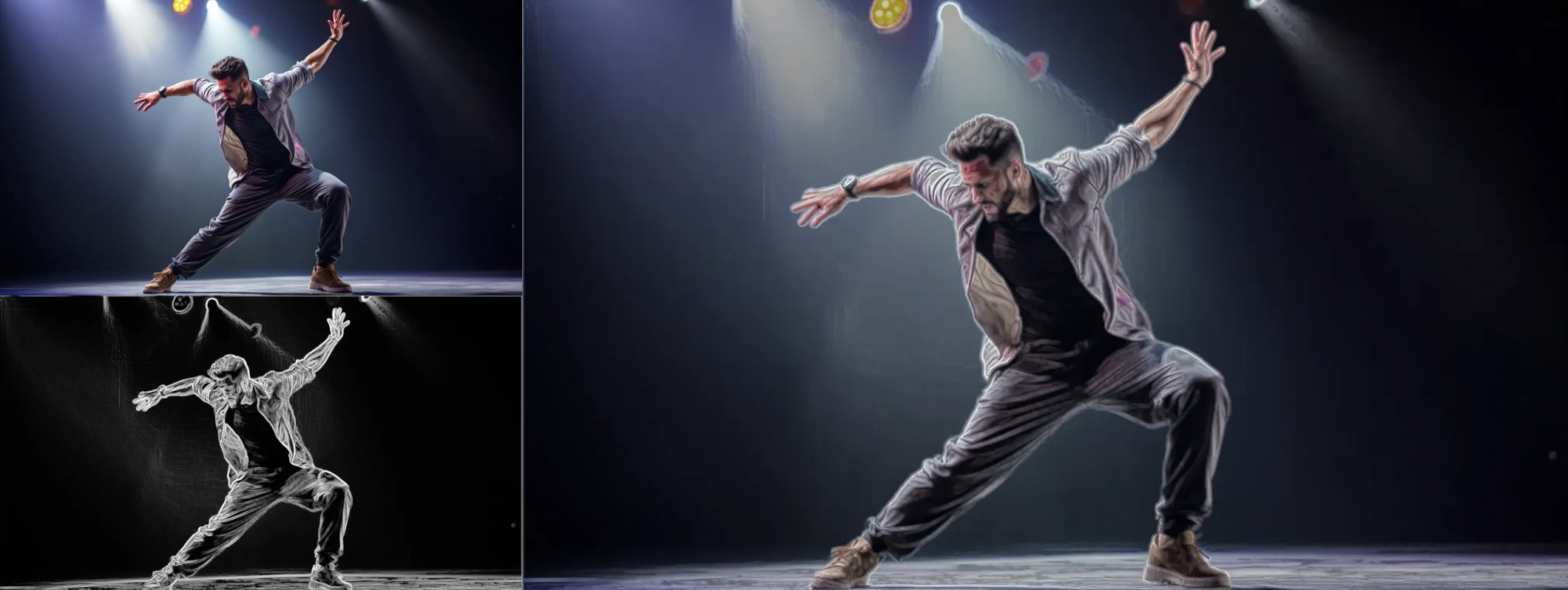

Blend Images Node
Blends two images together, weighing each image by the priority.
Inputs
The first image.
The second image.
Settings
A number from 0-1 that represents how much of the top image should be evident in the output. If 0, the output is the bottom image; if 1, the output is the top image.
Outputs
The final blended image.

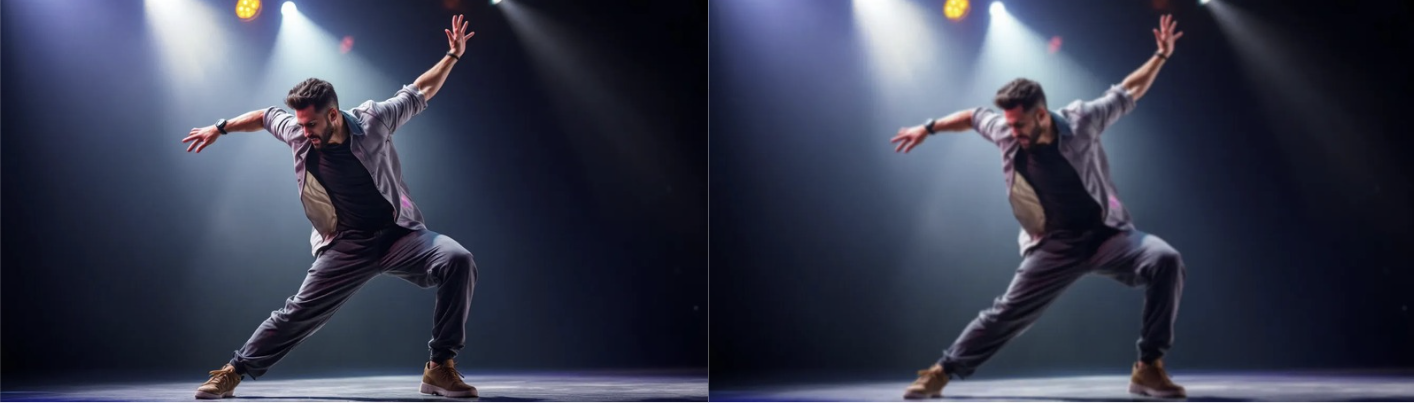

Blur Images Node
Applies a gaussian blur to an image.
Inputs
The image that will be blurred.
Settings
The amount of blurring of the image. The default is 1.0. The recommended range is between 0.1-50.
Outputs
The output image after blurring.

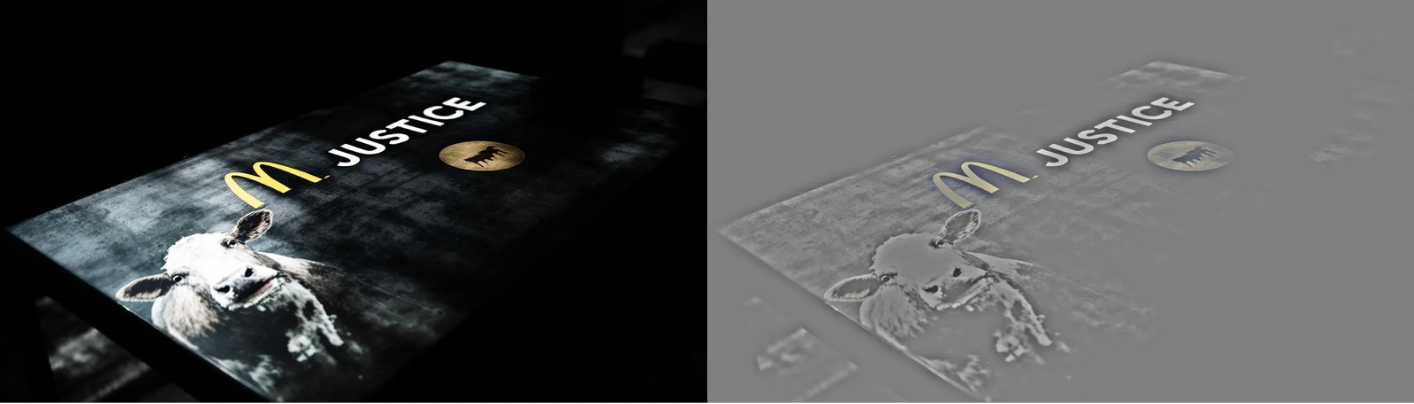

Extract Image Details Node
Extract the intricate details of an image, like text and markings.
Inputs
The base image whose details are of interest.
Outputs
An output image that has the intricate details of the input image, without all of the other low frequency details like colors and contours.
Filter Images Node
Applies a particular filter to an image.
Inputs
The base image
Settings

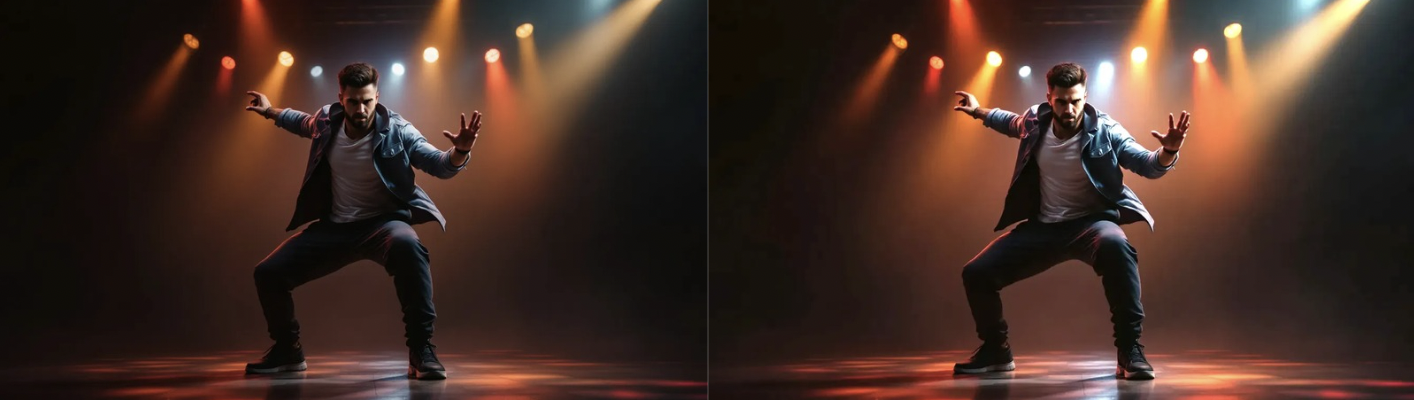

The filter of interest. Brighten: brightens images

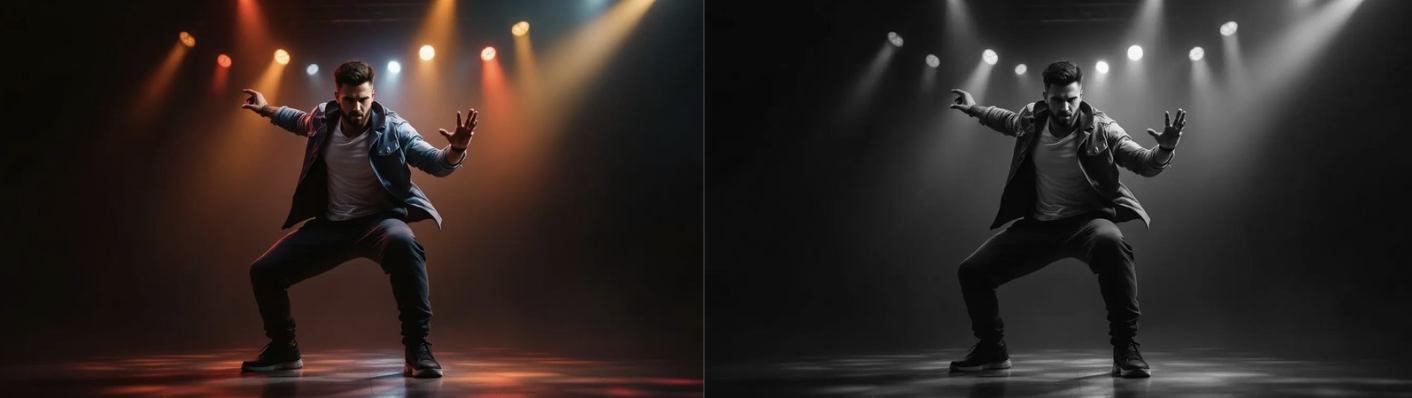

Grayscale: makes images into grayscale

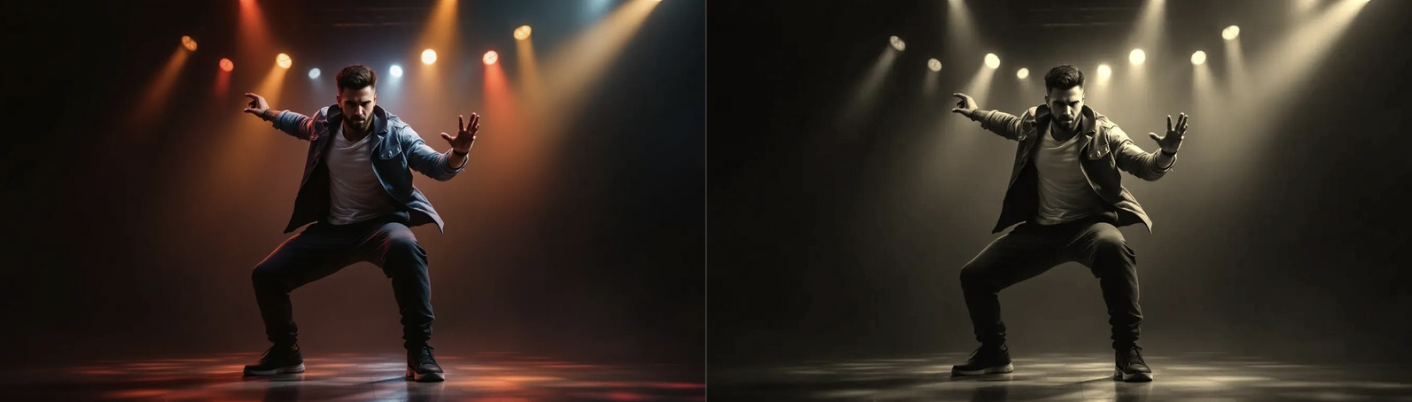

Sepia: adds a mellow tone to an image, giving it an archival or vintage appearance

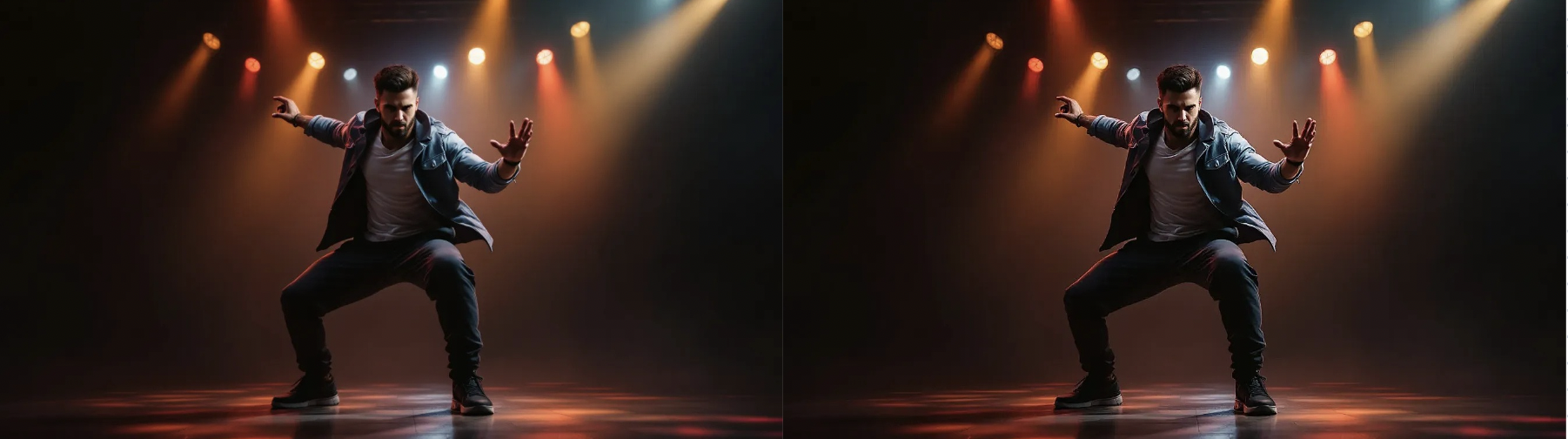

Sharpen: makes the outlines of an image more distinct
A number between 0 and 10 that represents the strength of the filter effect. note that for brightness, a level between 0-1 decreases brightness
Outputs
The image after the filter is applied.
Superimpose Images Node
